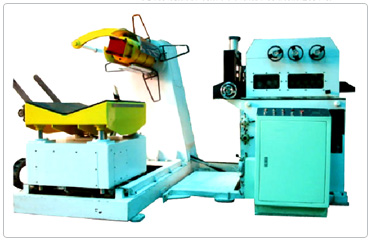

Leveling the feeding machine series Model：     LUBSL-300～LUBSL-1000 Uncoiler & Straightener(2 in 1)  Model LUBSL-300 LUBSL-500 LUBSL-600 LUBSL-800 LUBSL-1000  Material width（mm) 300 500 600 800 1000  Material thickness（mm) 0.5～3.2 0.5～3.2 0.5～3.2 0.5～3.2 0.5～3.2  Material weigth 2000kg 4000kg 5000kg 6000kg 8000kg  Coil oute diameter ф1200mm ф1200mm ф1200mm ф1500mm ф1500mm  Coil inner diameter ф508±20mm ф508±20mm ф508±20mm ф508±20mm ф508±20mm  Straightening roller 11pcs 11pcs 11pcs 11pcs 11pcs  Clip material roller 2pcs 2pcs 2pcs 2pcs 2pcs  Feeding direction From left to righ or from right to left  Max feeding speed 0-18m/min 0-18m/min 0-18m/min 0-18m/min 0-18m/min  Uncoller horsepower 2HP 3HP 5HP 5HP 10HP  Material horsepower 2HP 5HP 5HP 5HP 5HP  Expansion type Manual/Hydraulic Oilpressure  Loading type Oil pressure type  Induction type Contact type  Power 3ф380V/  3ф220V  Colour Rice white(customer requirement) FEATURES： Precise (2in 1) LUBSL Series, up to the high precision process of requirement. Provide high quality,high efficiency,personalization, automation of feeding system
