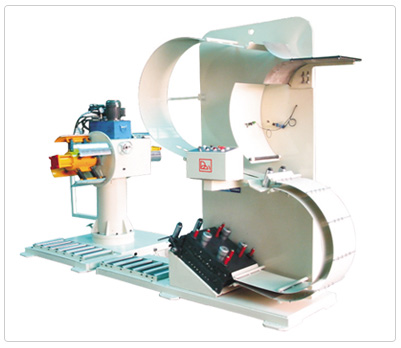

Leveling the feeding machine series Model：     DUC    S-looper feeding system  MODEL DUC-200SP DUC-300SP DUC-400SP DUC-200SP-S DUC-300SP-S DUC-400SP-S   Straightening Spelification  Straightening material width 30～200mm 30～300mm 30～400mm 30～200mm 30～300mm 30～400mm  Straightening  material  thickness 0.3-1.6mm  Straightening  roller ф38×15pcs   up7down8  Clip material  roller ф66×2pcs  Straightening  speed 60min 100min  Electromotor 2.2KW 2.2KW 3.7kw 2.2kw 2.2kw 3.7kw   Feeding Spelification  Max material  outer diameter ф1200mm ф1500mm ф1500mm ф1500mm ф1500mm ф1500mm  Material inner  diameter ф508±20mm  Coil width 30～200mm 30～300mm 30～400mm 30～200mm 30～300mm 30～400mm  Max.material  weight 2000kg×2 2000kg×2 3000kg×2 2000kg×2 2000kg×2 3000kg×2  Material switch  scope ф460～ф540mm  Uncoller Motor 2.2kw×2 2.2kw×2 2.2kw×2 2.2kw×2 2.2kw×2 2.2kw×2  Expansion type Oil pressure  Power 3ф220V/3ф380V
