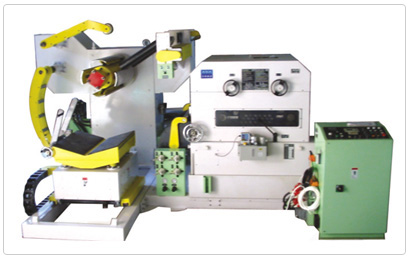

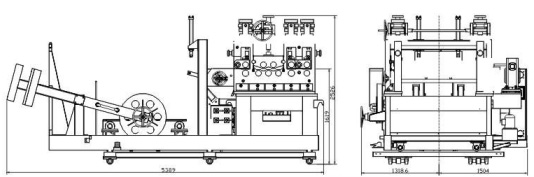

Leveling the feeding machine series Model：     NCDF    Uncoiler & Straightener & NC Feeder  Model NCDF-300 NCDF-400 NCDF-500 NCDF-600 NCDF-800 NCDF-1000 NCDF-1500  Material  width(mm) 30～300 30～400 30～500 30～600 30～800 30～1000 80-1500  Material  thickness(mm) 0.3～4.5 0.3～4.5 0.3～4.5 0.3～4.5 0.3～4.5 0.3～4.5 0.4-2.0  Straightening   roller up4down3 up4down3 up4down3 up4down3 up4down3 up4down3 up6down5  Feeding  speed(m/min) 18 18 18 18 18 18 18  Power 3ф220V 3ф 380V 3ф220V 3ф 380V 3ф220V 3ф 380V 3ф220V 3ф 380V 3ф220V 3ф 380V 3ф220V 3ф 380V 3ф220V 3ф 380V  Model NCDF-300A NCDF-400A NCDF-500A NCDF-600A NCDF-800A NCDF-1000A NCDF-1500A  Straightening  roller Up8Down7(with switch straightening rollerX1Pcs,double-decked auxiliary straightening rollerX27Pcs) PRODUCTS： Combine the Uncoiler& Straightener & NC Feeder into one machine,up to the high precision process of requirement Provide high quality,high efficiency,humanization and automation of feeding system   NCDF    Large Uncoiler & Straightener & NC Feeder Large Uncoiler & Straightener & NC Feeder(3 in 1) 1.Cimbine the Uncoiler & Straightener & NC Feeder into one machine,up to the high precision process of requirement. 2.Provide hith quality,high efficiency,humanization and automation of feeding system. 3.Used for thick material 6.0 T sheet with processing. 4.Servo feeder mechanism double gripper materials,materials don't skid. 5.0.01mm scale fine-tuning,to ensure accuracy of correction.  Model NCDF-1250  Straightening roller Up 2 Down 3  Feeding speed(M/MIN) 0～18  Material thickenss (MM) 2～6  Material width(MM) Max1250  Material inner diameter(MM) ф508-ф780  Material outer diameter(MM) ф1200  Material weight(KG) 6000  Straightener motor(KW) 7.5  Uncoiler motor(KW) 2.2  Air pressure(KGF/CM2) 5  Power 3ф220V/3ф 380V/3ф415V
