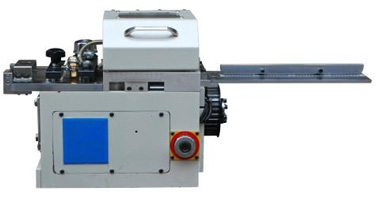

Gripper feeder(single material belt) suitable for high speed and precise feeding SPM can be 1,200 times/min.
Gripper feeder(multiple material belt) suitable for materials with different thickness and width
Item
GS-906N
Material width(mm)
0‵90
Material thickness(mm)
0.1‵1.5
Feeding line height
60-120

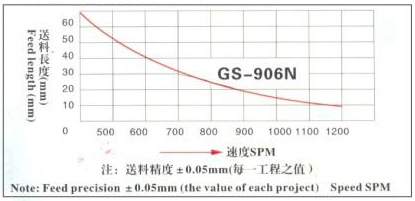

Feed length(mm)
60
Feed angle
180o
Release angle
adjustable
Feed mechanism
crank shaft transmission
Installation position
left
Feed direction
left-right
Weight
188kg
Designed for varicous and mass production Character of new gripper feeder
Suitable for high speed stamping and precise feeding press work.(Max.1,200 times/min.)
It is slient when the machine is working;no noise will be caused in the workplace
No press mark left on the material surface,enable plating.material aluminum alloy,stainless steel,copper,iron and secondary machining factories have their perfect stamping parts.All adjustments adopt portrayal,so the operation is easy and the stabillty is excellent.Any people may operate it easlly.The body is shaped integrally,which can avoid the resonance caused while pressing.
Standard specification(or design) of new gripper feeder
Panel thickness adujstment can be done only by turning the graduation according to the thickness of material.Release device can be adjusted only by turning the graduation according to the inner guide pin position of mould.Feed length is adjusted with the eccentric value of crank shaft(also by block gauge).Upper and tower clamping plater are pneumatic(pressure adjustable)When material inserted,upper and lower clamping plates are controlled b manual switch circulation oil system,and the transfer gear,fixed seat transfer device and other bearing parts adopt forced circulation oil immersion,which decreases the abrasion between different parts and proiongs its service life.Besides,the machine may work under high temperature for a long time.
