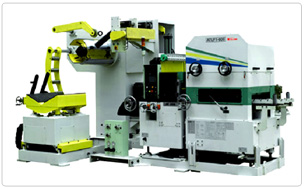

Leveling the feeding machine series Model：   SW series models：（Click on the links to the page）                         NC sheet metal welding machine                         Gon arc welding machine                         Servo Straight Feeder & Uncoiler& Material Welding Machine                         Semiautomatic Metal Welding Machine   SW     Servo Straight Feeder & Uncoiler& Material Welding Machine Servo Straight Feeder & Uncoiler& Material Welding Machine SPECIFICATION  Model ATLF1+300 ATLF1-400 ATLF1-500 ATLF1-600 ATLF1-800 ATLF1-1000  Coil inner  diameter ф1200mm ф1200mm ф1200mm ф1500mm ф1500mm ф1500mm  Coil outer  diameter ф508±20mm ф508±20mm ф508±20mm ф508±20mm ф508±20mm ф508±20mm  Uncoiler  Weight 2000kg 3000kg 4000kg 5000kg 6000kg 8000kg  Material  width 30-300mm 30-400mm 30-500mm 30-600mm 30-800mm 30-1000mm  Feeding  speed Stepless speed regulating  Material    thickness 0.3-2.5mm 0.3-2.5mm 0.3-2.5mm 0.3-2.5mm 0.3-2.5mm 0.3-2.5mm  Weldiing  thickness 0.3-1.5mm 0.3-1.5mm 0.3-1.5mm 0.3-1.5mm 0.3-1.5mm 0.3-1.5mm  Feed  precision ±0.15mm ±0.15mm ±0.15mm ±0.15mm ±0.15mm ±0.15mm  Feeding  length 0.1-9999.99mm (max) 0.1-9999.99mm (max) 0.1-9999.99mm (max) 0.1-9999.99mm (max) 0.1-9999.99mm (max) 0.1-9999.99mm (max)  Feeding  height According to the press bolster  Motive  power  motor 2HP 3HP 3HP 5HP 5HP 10HP  Feeding  servo  motor Servo3.5KW Servo3.5KW Servo3.5KW Servo5KW Servo5KW Servo5KW  Welding  feeding  servo  motor Servo1KW Servo1KW Servo1KW Servo1KW Servo1KW Servo1KW  Straightening  roller 11pcs(Up6 Down5)+auxiliary×1pcs  Power 3ф380V/3ф220V  Colour Rice white (customer requirement) Products： Combine the 5 in 1 Servo Straight Feeder & Uncoiler & Material Welding Machine into one machine. Provide high quality,high efficiency,humanization and automation of feeding system. Improve the punching production efficiency. Save waste material,reduce the tranditional wastage from changing the material head and the material end,increase the production capacity. The example for installation:(The old 3 in 1 can add NC Sheet Metal Welding Machine) Uncoiler & Straightener & NC Feeder(3 in 1) NC Sheet Metal Welding Machine Sheet metal welding machine & (5in 1) machine of operation The welding sample
